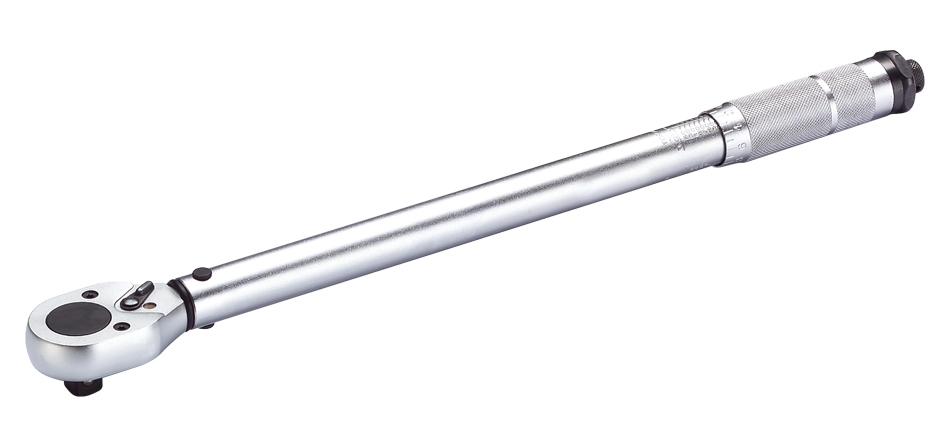

Adjustable Traditional Torque Wrench
Product Introduction

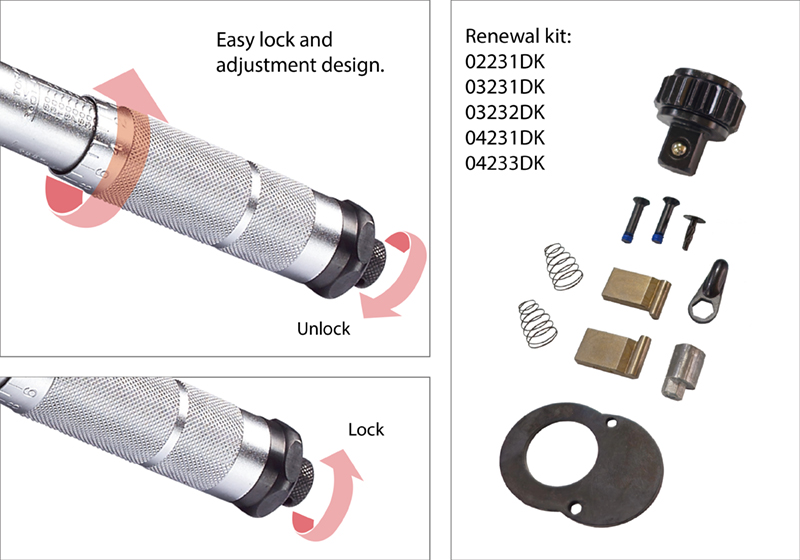

- Ratchet head: Chromium - vanadium alloy steel brings better strength and life cycle, it applied for CW and CCW directions operation. Repair kit for inner spare parts of ratchet head is available.
- Reliable mechanism: The robust and resistant fully chromed steel tube. An audible and palpable signal indicates automatically when the desire torque value is achieved.
- Serial number: Each piece stamping serial number for traceability.
- Scales: Knurled scale marking (single/ dual scale) on steel tube.
- Knurled handle: Non-slip handle design
- Adjustment design: Turn screw CCW direction to "UNLOCK" the wrench for torque setting; turn screw CW direction to "LOCK".
| TT NO. | Square drive | Teeth | Nm/kgf-m (kgf-cm) | Graduation | L(mm) | g | case/CTN |
|---|---|---|---|---|---|---|---|
| TW-223-1A | 1/4” | 24T | 5~25/51~255 | 0.2 | 280 | 595 | 24 |
| TW-323-1A | 3/8” | 24T | 5~25/51~255 | 0.2 | 280 | 595 | 24 |
| TW-323-2A | 20~110/2.04~11.22 | 1.0 | 370 | 830 | 24 | ||
| TW-323-6A | 10~110/1.02~11.22 | 1.0 | 370 | 830 | 24 | ||
| TW-423-1A | 1/2” | 24T | 42~210/4.3~21.4 | 1.0 | 450 | 1316 | 12 |
| TW-423-2A | 50~350/5.1~35.7 | 3.0 | 570 | 1658 | 12 | ||
| TWN-423-2A | 70~340/7.1~34.7 | 3.0 | 570 | 1658 | 12 | ||
| TW-423-6A | 28~210/2.9~21.4 | 1.0 | 450 | 1316 | 12 |
| TT NO. | Square drive | Teeth | Nm/ft-lb (in-lb) | Graduation | L(mm) | g | case/CTN |
|---|---|---|---|---|---|---|---|
| TW-223-1F | 1/4” | 24T | 5~25/44.3~221.3 | 0.2 | 280 | 595 | 24 |
| TW-323-1F | 3/8” | 24T | 5~25/44.3~221.3 | 0.2 | 280 | 595 | 24 |
| TW-323-2F | 20~110/14.8~81.1 | 1.0 | 370 | 830 | 24 | ||
| TW-423-1F | 1/2” | 24T | 42~210/31~154.9 | 1.0 | 450 | 1316 | 12 |
| TW-423-2F | 50~350/36.9~258.1 | 3.0 | 570 | 1658 | 12 | ||
| TW-423-6F | 28~210/20.7~154.9 | 1.0 | 450 | 1316 | 12 |
| TT NO. | Square drive | Teeth | ft-lb(in-lb)/kgf-m(kgf-cm) | Graduation | L(mm) | g | case/CTN |
|---|---|---|---|---|---|---|---|
| TW-223-1B | 1/4” | 24T | 25~250/29~288 | 1.5 | 280 | 595 | 24 |
| TWN-223-1B | 55~250/63~288 | 1.5 | 280 | 595 | 24 | ||
| TW-323-1B | 3/8” | 24T | 25~250/29~288 | 1.5 | 280 | 595 | 24 |
| TWN-323-1B | 55~250/63~288 | 1.5 | 280 | 595 | 24 | ||
| TW-323-2B | 5~80/0.7~11.1 | 0.5 | 370 | 830 | 24 | ||
| TWN-323-2B | 15~80/2.1~11.1 | 0.5 | 370 | 830 | 24 | ||
| TW-423-1B | 1/2” | 24T | 10~150/1.4~20.8 | 1.0 | 450 | 1316 | 12 |
| TWN-423-1B | 30~150/4.2~20.8 | 1.0 | 450 | 1316 | 12 | ||
| TW-423-2B | 30~250/4.2~34.6 | 2.0 | 570 | 1658 | 12 | ||
| TWN-423-2B | 50~250/6.9~34.6 | 2.0 | 570 | 1658 | 12 |
| TT NO. | Square drive | Teeth | ft-lb(in-lb)/Nm | Graduation | L(mm) | g | case/CTN |
|---|---|---|---|---|---|---|---|
| TW-223-1C | 1/4” | 24T | 25~250/2.8~28.2 | 1.5 | 280 | 595 | 24 |
| TWN-223-1C | 55~250/6.2~28.2 | 1.5 | 280 | 595 | 24 | ||
| TW-323-1C | 3/8” | 24T | 25~250/2.8~28.2 | 1.5 | 280 | 595 | 24 |
| TWN-323-1C | 55~250/6.2~28.2 | 1.5 | 280 | 595 | 24 | ||
| TW-323-2C | 5~80/6.8~108.5 | 0.5 | 370 | 830 | 24 | ||
| TWN-323-2C | 15~80/20.3~108.5 | 0.5 | 370 | 830 | 24 | ||
| TW-423-1C | 1/2” | 24T | 10~150/13.6~203.4 | 1.0 | 450 | 1316 | 12 |
| TWN-423-1C | 30~150/40.7~203.4 | 1.0 | 450 | 1316 | 12 | ||
| TW-423-2C | 30~250/40.7~339.0 | 2.0 | 570 | 1658 | 12 | ||
| TWN-423-2C | 50~250/67.8~339.0 | 2.0 | 570 | 1658 | 12 |
