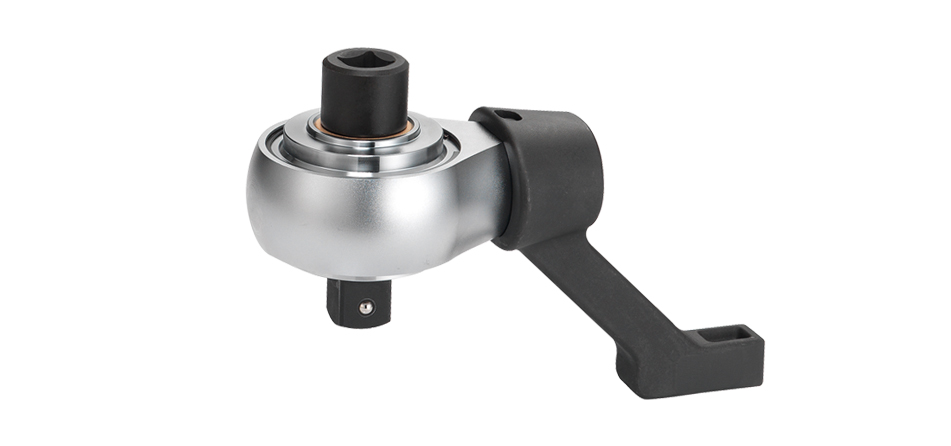

Torque Multiplier 1500NM/2700NM

Product Name : Torque Multiplier 1500NM/2700NM
Features
  • Planetary gear carrier mechanism makes high transmission efficiency and load capacity.
  • 5:1 torque multiplication.
  • Multiplication accuracy ±5%.
  • Supplied with 2 reaction bars.
Inquiry
Product Introduction
proimages/products/Torque_Multiplier/_2700NM/1500倍力器特點說明_工作區域_1.jpg
  1. Input end: Chromium-molybdenum alloy steel brings better strength and life cycle.
  2. Output end: Chromium-molybdenum alloy steel brings better strength and life cycle.
  3. Main body: Electroplating Finished good for anti-corrosion and anti-abrasion.

    (a)Planetary gear carrier device brings high transmission efficiency and load capacity.

    (b)All gears rotate on needle roller bearings throughout the operating process.

  4. Reaction arm: Each tool is supplied with 2 reaction bars subject to the working environment.

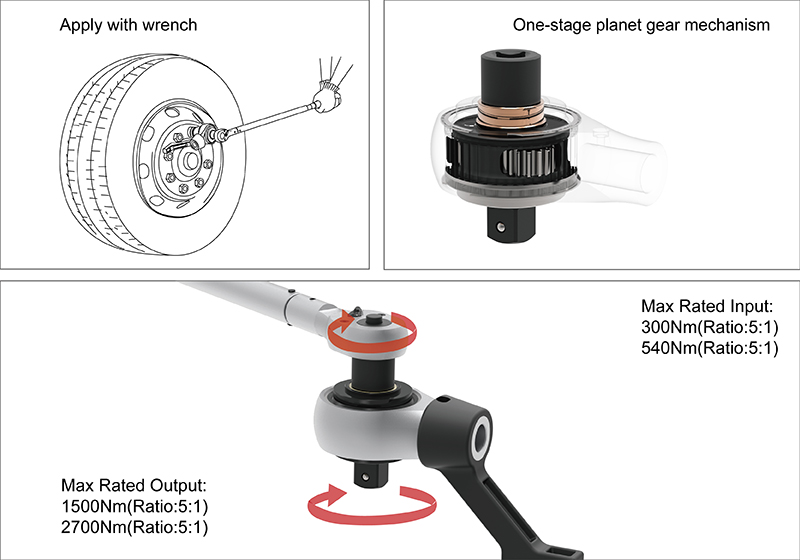

proimages/products/Torque_Multiplier/_2700NM/倍_2700倍力器操作應用圖-01.jpg

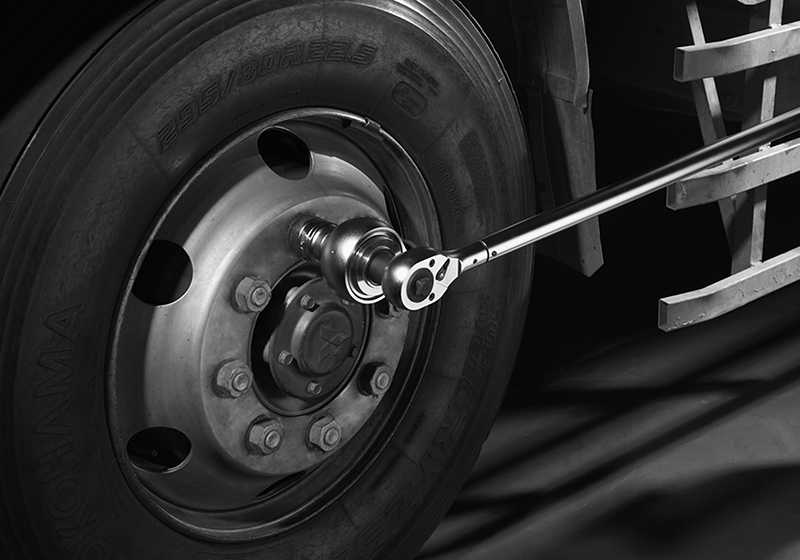

proimages/products/Torque_Multiplier/_2700NM/倍力器情境圖.jpg
TT NO.Nmft-lbRatioInput SquareOutput Squaregcase/CTN
TW-416 1500 1100 5:1 1/2" 3/4" 6480 2
TW-418 1500 1100 5:1 1/2" 1" 6480 2
TW-618 2700 2000 5:1 3/4" 1" 6480 2
