2500NM Torque Wrench
Product Introduction
- Round head: A highly robust mechanism with inner 4 pawls mechanism design to bear large output value, without plate and screws to avoid loosing while operation. Push-through square drive.
- Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. An audible and palpable signal indicates automatically when the desire torque value is achieved.
- Serial number: Each piece stamping serial number for traceability.
- Scales: Easy read laser scales is flexible for multi units and double scales for different market need.
- Micrometer scales: Very precise adjustment by visible micrometer laser scales on handle ensure optimal and simplified readings while operation.The micrometer scales for precision adjustment is in integral values, for user easily take round figure while operation.

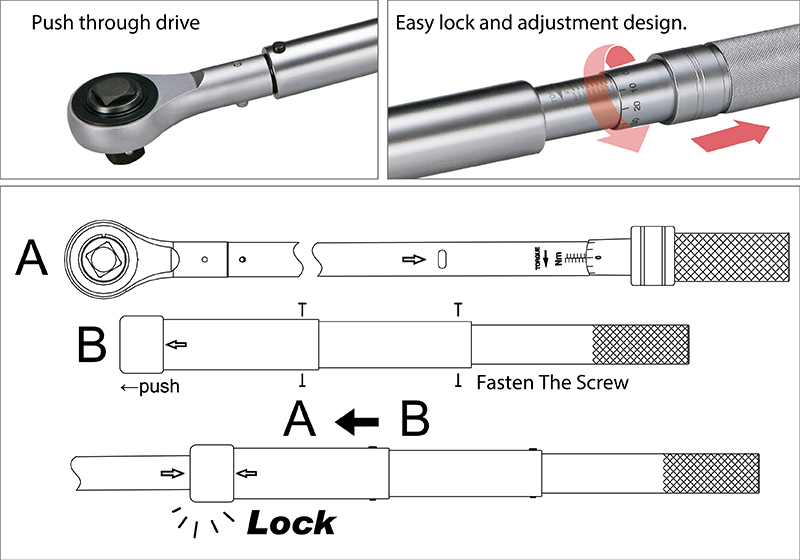

- Lock ring: Easy torque adjustment by press down the Lock-ring, brings energy saving and automatically lock device to avoid accidentally altering setting.
- Knurled handle: Non-slip knurled handle design; customized color handle is available.
- End cap: Aluminum poly end cap with standard or customized design.

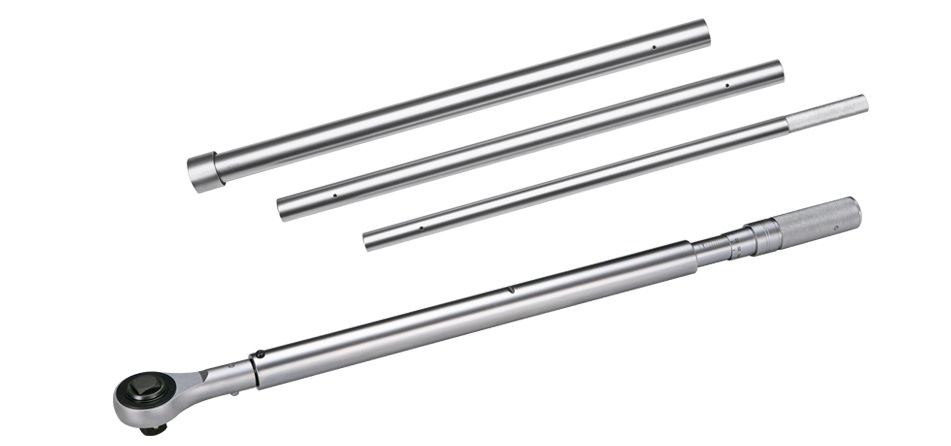

- Extension bar: It is necessary to connect 3 extension bars while operation. The easy lock design, to insert extension bar until locking position.
| TT NO. | Square drive | Teeth | Nm | Graduation | L(mm) | g | case/CTN |
|---|---|---|---|---|---|---|---|
| TW-822-2D | 1” | 36T | 400~2000 | 20 | 2300 | 18300 | 1 |
| TW-822-3D | 500~2500 | 20 | 2755 | 19600 | 1 |
| TT NO. | Square drive | Teeth | ft-lb | Graduation | L(mm) | g | case/CTN |
|---|---|---|---|---|---|---|---|
| TW-822-2E | 1” | 36T | 300~1500 | 10 | 2300 | 18300 | 1 |
| TW-822-3E | 400~2000 | 10 | 2755 | 19600 | 1 |
