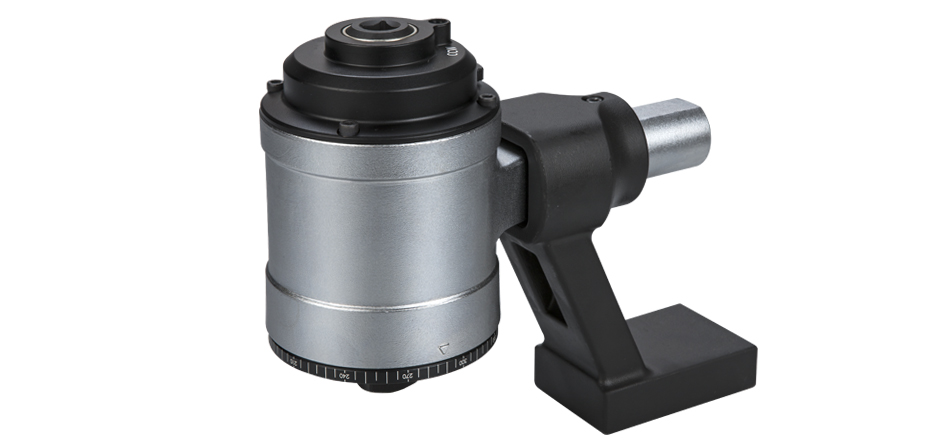

Torque Multiplier 3000NM/4500NM

Product Name : Torque Multiplier 3000NM/4500NM
Features
  • With high ratio gearbox 26:1, multiplication accuracy better than ±5%.
  • High ratio offer an idea to replace long lever arms and heavy wrenches.

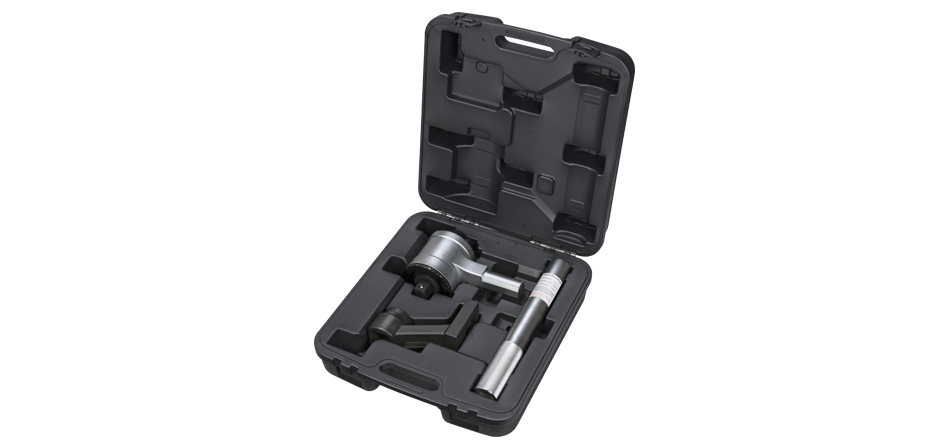

  • Supplied with 2 different reaction bars.
  • Robust construction with no maintenance necessary and long lifetime use.
Video
Inquiry
Product Introduction
proimages/products/Torque_Multiplier/_4500NM/4500倍力器特點說明_工作區域_1_up.jpg
  1. Input end: Chromium-molybdenum alloy steel brings better strength and life cycle.

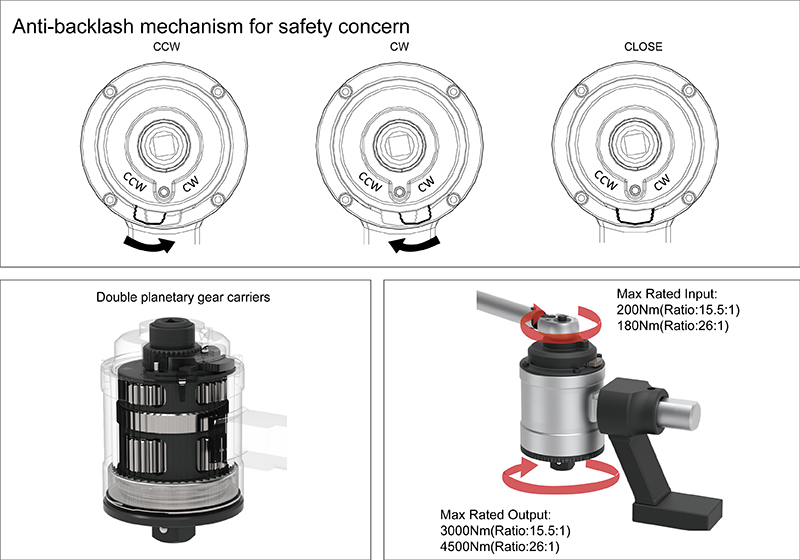

  2. Safety device: Anti-backlash mechanism for safety concern and comfortable operation.
  3. Main body: Electroplating Finished; good for anti-corrosion and anti-abrasion.

    Planetary gear mechanism, double planetary-gear-carriers brings high load capacity with high ratio 26:1.

  4. Angle protractor: For easy torque setting and angle tightening.
  5. Output end: chromium-molybdenum alloy steel brings better strength and life cycle.
  6. Reaction arm: Two alternative reaction bars can be applied to different working environment.
proimages/products/Torque_Multiplier/_4500NM/倍_4500倍力器操作應用圖-01.jpg
TT NO.Nmft-lbRatioInput SquareOutput Squaregcase/CTN
TW-428-01 3000 2200 15.5:1 1/2" 1" 11500 1
TW-428-02 4500 3300 26:1 1/2" 1" 13000 1
