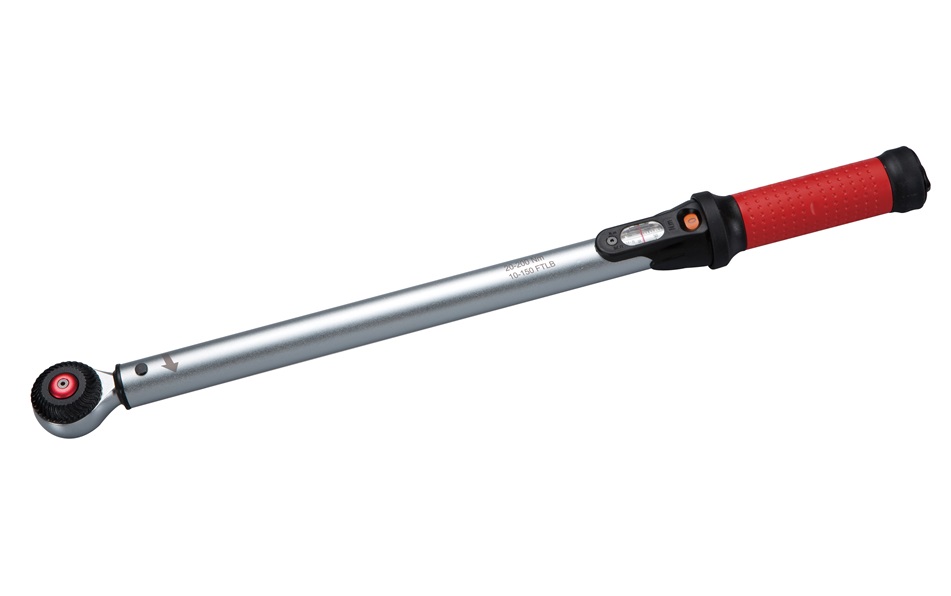

Reversible Robust Torque Wrench

Product Name : Reversible Robust Torque Wrench
Features
  • Reversible torque wrench for bi-directional tightening.
  • Robust 72 teeth ratchets with 5° gear action.
  • Fixed head version allows to use in narrow spaces.
  • Easily readable dual scale N-m and lbf-ft below the window.
  • Additional micrometer scale for setting interim value.
  • Ergonomically shaped and convenient plastic handle grip.
  • Locking button enables reliable locking of the torque setting.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
  • Tolerance of torque +-3%.
Inquiry
Product Introduction
Customized Reversible Robust Torque Wrench Solutions from Torque-Tech Precision

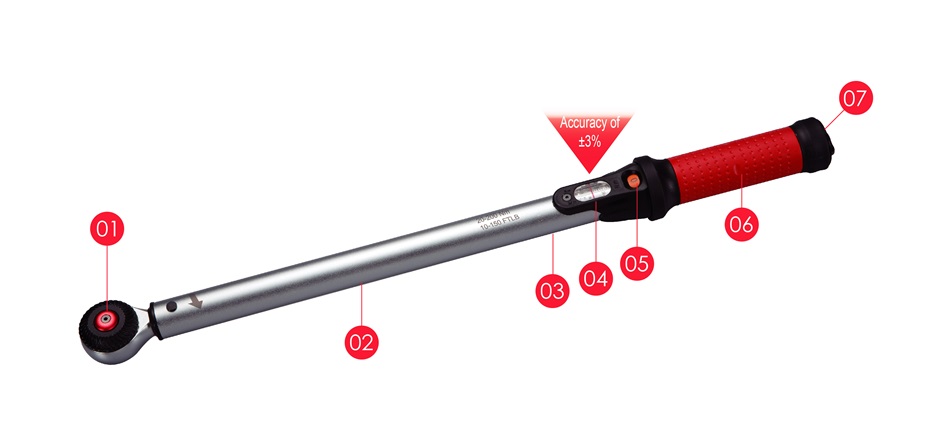

  1. Ratchet head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. The smaller round head is suitable for narrow working environment.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Dual scale window type; easy readable for two different units.
  5. Micrometer scale: For more accurate torque value setting.
  6. NBR handle: Ergonomic shape with non-slip and comfortable features.

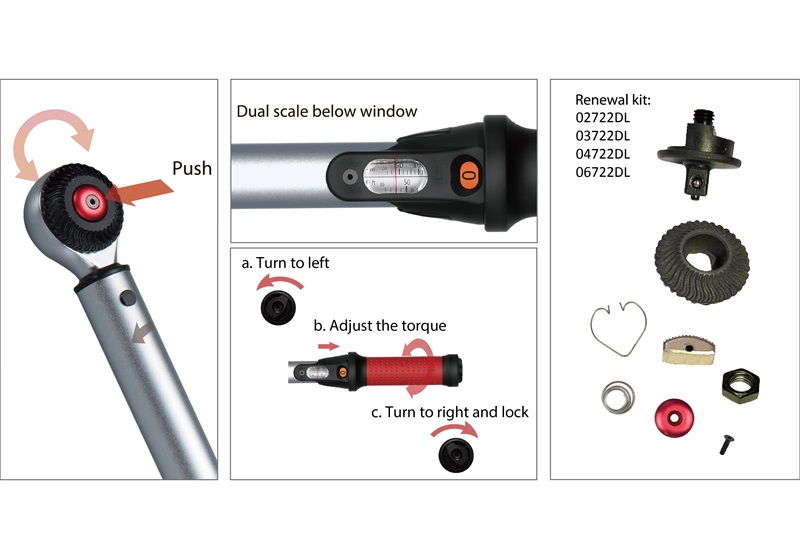

  7. Adjustment system:

    Locking button enables reliable locking of the torque setting.

    Turn switch CCW direction to "UNLOCK" the wrench for torque setting; turn switch CW direction to "LOCK".

proimages/products/72_related_change_2408/A-LG操作應用圖-改-01(240827).jpg
TT NO.Square driveTeethNmlbf.ftGraduationL(mm)gcase/CTN
TW-277-2F 1/4” 72T 2~25 1.5~18 0.1 298 500 24
TW-277-3F 5~25 3.6~18 0.1 298 500 24
TW-377-2F 3/8” 72T 5~50 3.5~37 0.25 363 555 24
TW-377-3F 10~50 7.4~37 0.25 363 555 24
TW-477-1F 1/2” 72T 10~100 8~75 0.5 445 1110 12
TW-477-4F 20~100 15~75 0.5 445 1110 12
TW-477-2F 20~200 10~150 1 513 1280 12
TW-477-5F 40~200 30~150 1 513 1280 12
TW-477-3F 60~300 45~220 1 605 1450 12
TW-677-1F 3/4" 72T 100~600 75~440 2 1040 4650 2
TW-677-2F 150~800 110~590 2 1120 5180 2
TW-677-3F 200~1000 150~740 2 1120 5180 2
