Adjustable Slipping Torque Wrench

Product Name : Adjustable Slipping Torque Wrench
Features
  • Unique continuous slipping mechanism eliminates the risk of over tightening.
  • With 36T/48T ratchet-function for controlled clockwise direction.
  • Adjustable tool in a wide torque range of applications.
  • Easily readable dual scale N-m and lbf-ft below a window.
  • Additional micrometer scale for setting interim value.
  • Ergonomically shaped and convenient plastic handle grip.
  • Locking button enable reliable locking of the torque setting.
  • Tolerance of torque +-6%. (1-5NM, 2-10NM)
  • Tolerance of torque +-4%. (5-25NM, 10-60NM, 25-100NM)
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Video
Inquiry
Product Introduction
proimages/products/Slipping_Torque_Wrench_/Adjustable_Slipping_Torque_Wrench/空轉式特點說明_工作區域_1.jpg

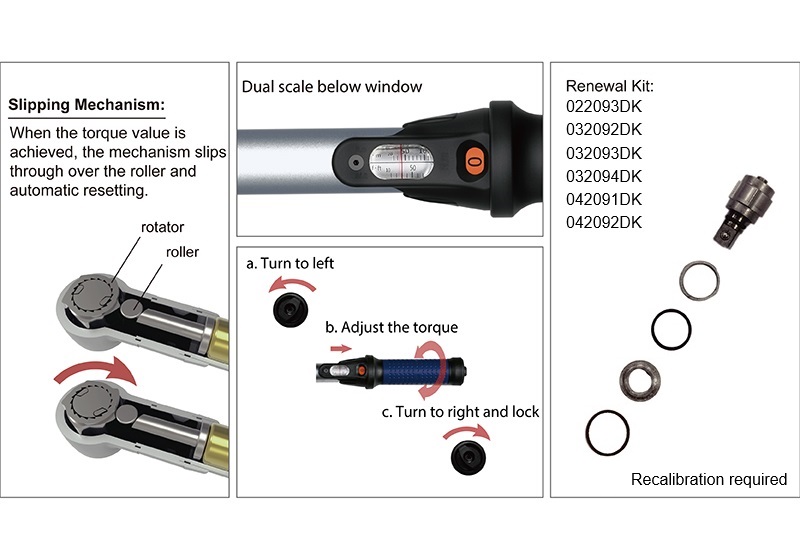

  1. Ratchet head: A highly robust ratchet mechanism for CW direction application. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism:

    The robust and resistant fully chromed steel tube is ideal of industrial use.

    The unique continuous slipping mechanism eliminates the risk of over tightening.

  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Dual scale window type; easy readable for two different units.
  5. Micrometer scale: For more accurate torque value setting. The additional window with big reading number for easy torque setting.
  6. NBR grip handle: Ergonomic shape with non-slip and comfortable features.
  7. Adjustment system:

    Locking button enables reliable locking of the torque setting.

    Turn switch CCW direction to "UNLOCK" the wrench for torque setting; turn switch CW direction to "LOCK".

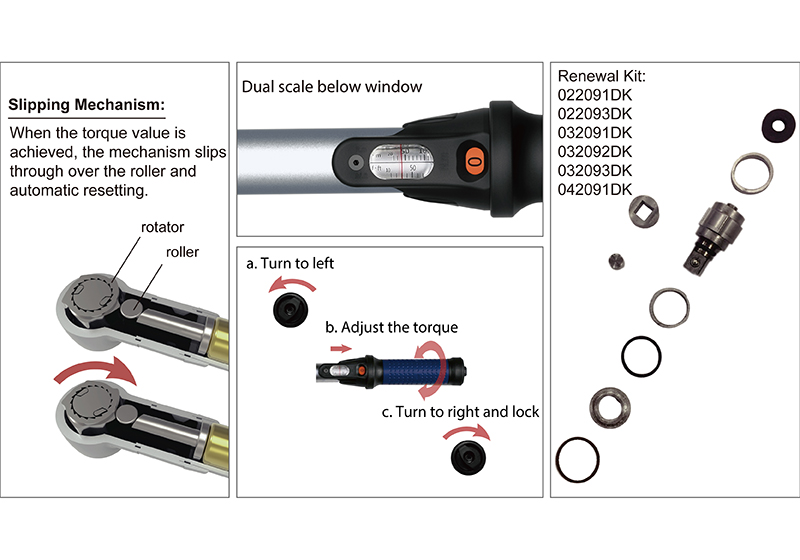

proimages/products/Slipping_Torque_Wrench_/Adjustable_Slipping_Torque_Wrench/空轉操作應用圖-01.jpg
TT NO.Square driveTeethNmlbf.ftGraduationL(mm)gcase/CTN
39216-1F 1/4” 36T 1~5 0.7~3.7 0.05 260 520 24
39216-2F 2~10 1.5~7.4 0.1 260 520 24
39216-3F 5~25 3.5~18 0.1 320 590 24
39316-2F 3/8" 36T 5~25 3.5~18 0.1 320 590 24
39316-3F 48T 10~60 8~44 0.25 355 655 24
39316-4F 25~100 18~75 0.5 475 1430 12
39416-1F 1/2" 48T 10~60 8~44 0.25 355 655 24
39416-2F 25~100 18~75 0.5 475 1430 12
TT NO.Square driveTeethlbf.in(lbf.ft)NmGraduationL(mm)gcase/CTN
39216-1C 1/4” 36T 10~45 1~5 0.5 260 520 24
39216-2C 20~90 2.5~10 1 260 520 24
39216-3C 50~220 6~25 1 320 590 24
39316-2C 3/8” 36T 50~220 6~25 1 320 590 24
39316-3C 48T 8~42 10~56 0.2 355 655 24
39416-1C 1/2" 48T 8~42 10~56 0.2 355 655 24
