Aluminum Torque Wrench (Dual-Drives) - TORQUE-TECH PRECISION CO., LTD.

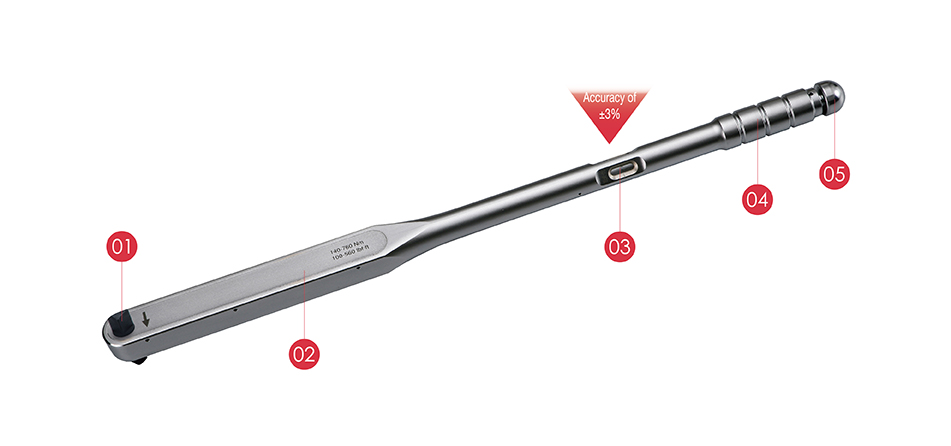

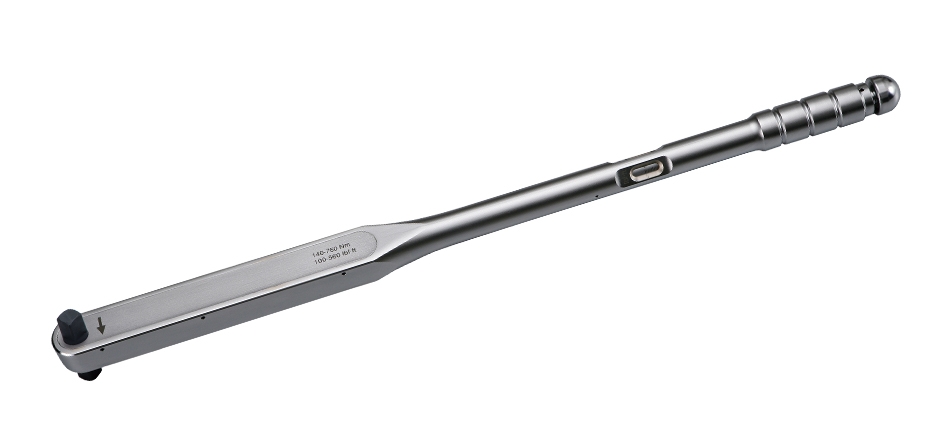

Product Name : Aluminum Torque Wrench (Dual-Drives)

Industrial application with durability.
Dual drives design for applying to both clockwise and counterclockwise directions.
Lightweight yet robust; housing is made of aluminium alloy.
Multi-lever mechanism brings length independence and accurate torque.
Loud click sound and strong impulse when torque value reached.
Chrome-plating finish strengthens the material hardness & anti-collision.
Quick pull out & easy adjustment with unique crank.
Tolerance of torque ±3%.
Quality meets DIN ISO 6789 & ASME B107.300-2010.

Q'ty :

Inquiry

Output Square Driver:
Chromium - molybdenum alloy steel brings better strength, toughness, stability and life cycle.

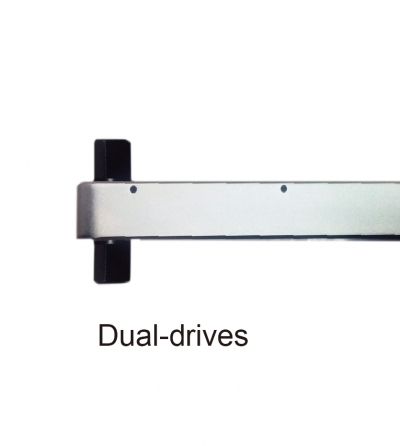

Dual drives design is an idea for both clockwise and counterclockwise use.
Multi-lever mechanism: Integrated 3-lever chain mechanism brings length independence, greater sensitivity, high accuracy and a long-life cycle. For the main body, we use the high intensity aluminum alloy. The weight of Aluminum is extremely lighter than steel , good for long -time operation and heavy industry. Chrome-plating finish strengthens the material hardness & anti-collision.
Scales: Dual-scales window of torque measurement (N.m. & Ft-lb).
Handle: Nice-to-hold handgrip enables safe work and less operator fatigue.
Energy saving torque-adjusting design: Quick pull out and easy adjustment with unique crank. It is suitable for heavy, aerospace industry, wind power industry and automation industries.

TT NO.	Square drive	Nm	lbf.ft	Graduation	L(mm)	g	case/CTN
TW-427-1F	1/2”	20~120	15~90	5	475	1240	12
TW-427-2F		40~200	30~150	5	563	1500	12
TW-427-3F		50~300	35~220	5	625	1560	12
TW-627-2F	3/4”	110~550	80~400	10	827	3000	2
TW-627-3F		140~760	100~560	10	827	3000	2
TW-627-4F		200~1000	140~740	10	1413	3800	2

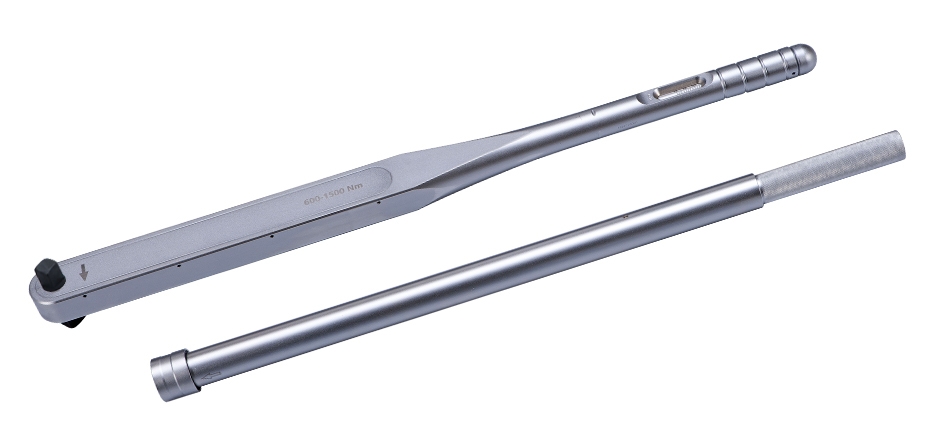

TW-827-1D	1"	600~1500	-	25	1615	10900	1

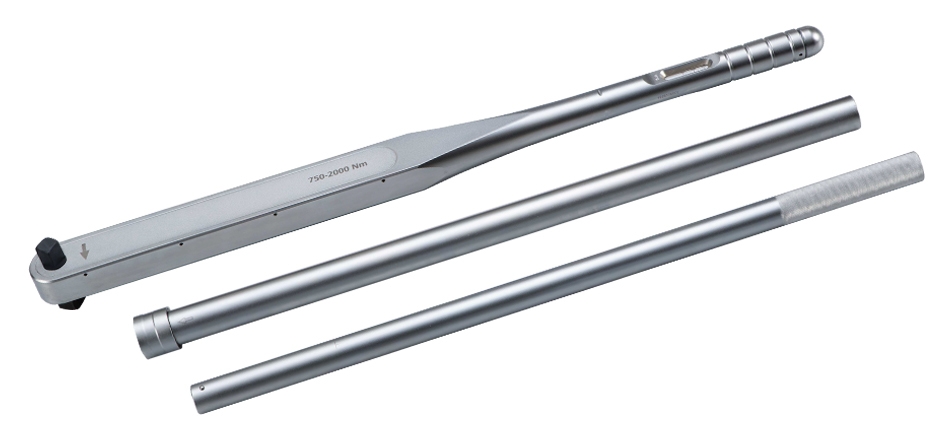

TW-827-2D	1"	750~2000	-	50	2370	11700	1
