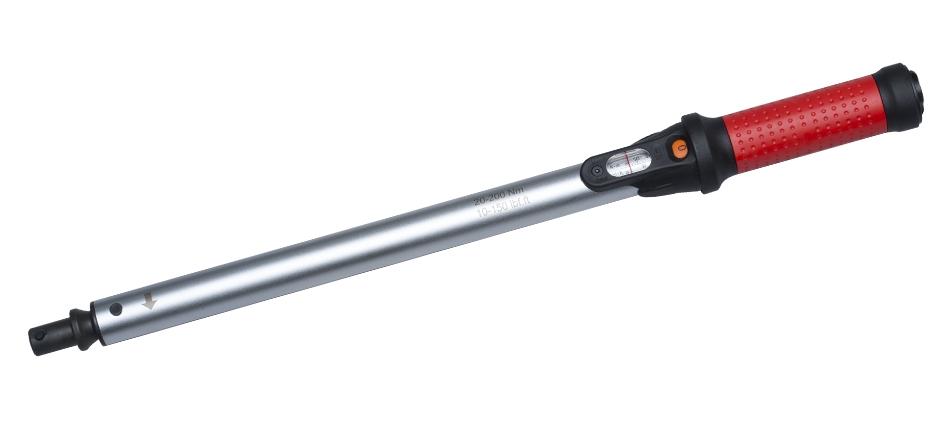

Interchangeable Robust Torque Wrench (spigot end)

Product Name : Interchangeable Robust Torque Wrench (spigot end)
Features
  • Use with standard insert tools (Ø16mm spigot end).
  • Quick released button design for easy insert head removal.
  • Easily readable dual scale N-m and lbf-ft below window.
  • Additional micrometer scale for setting interim value.
  • Ergonomically shaped and convenient plastic handle grip.
  • Locking button enables reliable locking of the torque setting.
  • Applied to both clockwise and counterclockwise directions.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
  • Tolerance of torque +-3%.
Inquiry
Product Introduction
proimages/products/Window_Scale_Torque_Wrench_/Interchangeable_Robust_Torque_Wrench-Spigot/LG圓頭更換特點說明_工作區域_1.jpg
  1. Spigot head:

    Quick released button design for changing insert tools quickly.

    It is available for standard insert tools Ø16mm.

  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use.
  3. Scales: Dual scale window type; easy readable for two different units Nm/ lbf.ft.
  4. Micrometer scale: For more accurate torque value setting with big number below window.
  5. NBR grip handle: Ergonomic shape with non-slip and comfortable features.
  6. Adjustment system:

    Locking button enables reliable locking of the torque setting.

    Turn switch CCW direction to "UNLOCK" the wrench for torque setting; turn switch CW direction to "LOCK".

TT NO.mmNmlbf.ftGraduationL(mm)gcase/CTN
TW-633-2F Ø16 5~50 3.5~37 0.25 350 440 24
TW-634-1F 10~100 8~75 0.5 435 1050 12
TW-634-2F 20~200 10~150 1 500 1230 12
