Mini Torque Screwdriver - TORQUE-TECH PRECISION CO., LTD.

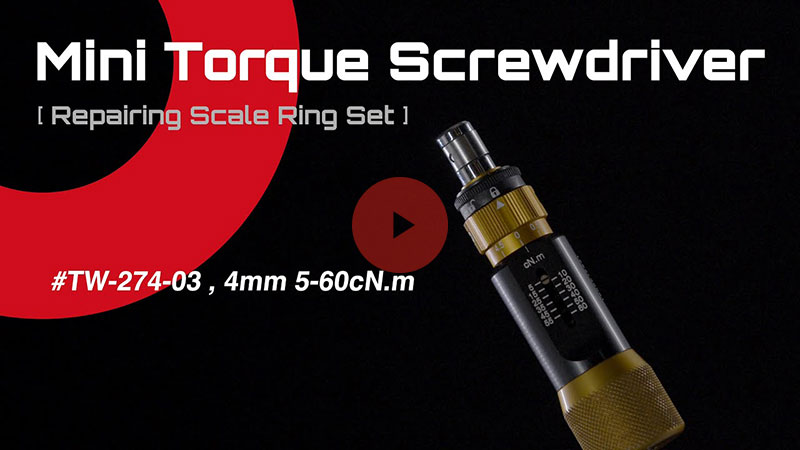

Product Name : Mini Torque Screwdriver

Tolerance of torque ±6%.
Easy-to read laser scale.
Slipping clutch mechanism of the product brings the benefit of overload protection.
Torque setting by twisting the golden adjustment knob.
Lock knob holds selected torque value in place.
Aluminum alloy body with light weight benefit.
Applied to both clockwise and counterclockwise directions.
Ideal for production line use & especially for small torque demand.
Quality meets DIN ISO 6789 & ASME B107.300-2010.

Q'ty :

Inquiry

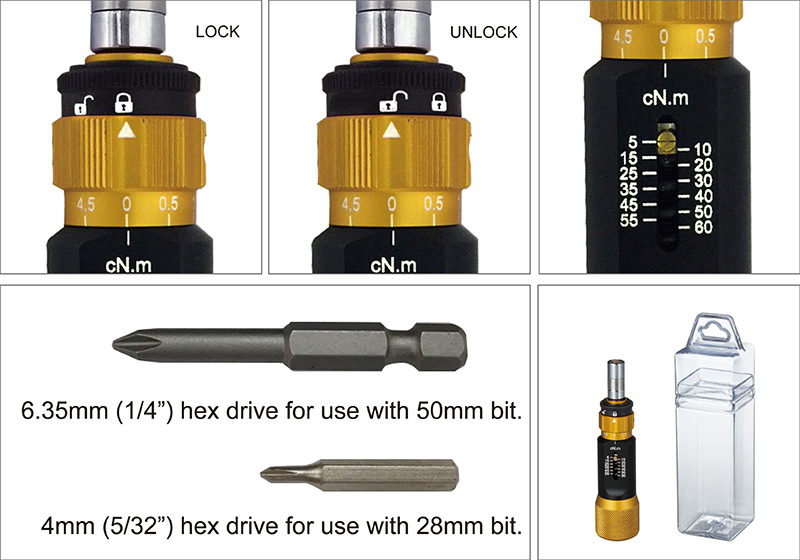

Head:
6.35 mm(1/4") hex drive for use with 50 mm bit.

4 mm (5/32") hex drive for use with 28 mm bit.
Locking mechanism: Icon image of Lock / Unlock instruction for use.
Reliable mechanism: The slipping clutch mechanism to prevent the over tightening.
Scales: Easy read laser scales is flexible for multi units.
Aluminum alloy body: Bring light weight benefit.

TT NO.	Hex.	cNm	Graduation	L(mm)	g	case/CTN
TW-274-03	4.00mm	5~60	0.5	100	105	72

TT NO.	Hex.	cNm	Graduation	L(mm)	g	case/CTN
TW-264-03	6.35mm	5~60	0.5	100	105	72

TT NO.	Hex.	in-lb	Graduation	L(mm)	g	case/CTN
TW-274-23	4.00mm	0.5~6	0.05	100	105	72

TT NO.	Hex.	in-lb	Graduation	L(mm)	g	case/CTN
TW-264-23	6.35mm	0.5~6	0.05	100	105	72
