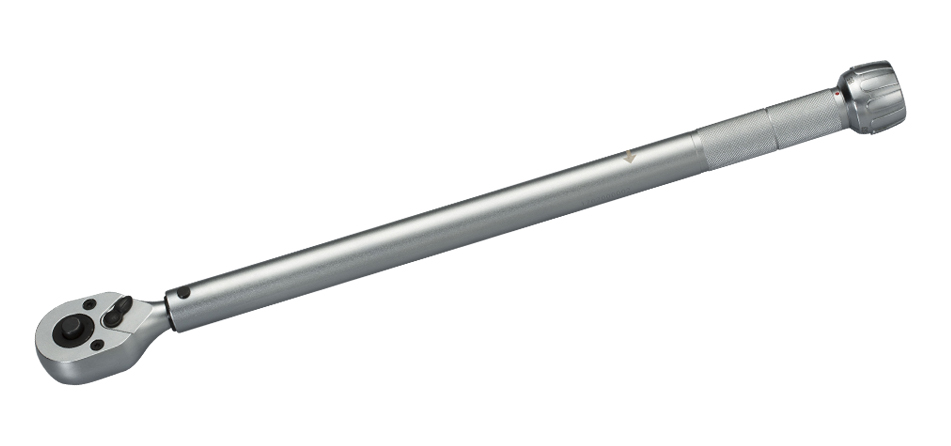

Multi-Range Preset Torque Wrench

Product Name : Multi-Range Preset Torque Wrench
Features
  • Industrial application with durability.
  • CW/CCW directions.
  • Quick release button design.
  • Torque value can be preset from 80, 100, 120, 140 to 160 Ft-lb; we offer the model with 2,3,4 or 5 stage options.
  • The knurled metal handle brings the non-slip profit.
  • Easy torque setting with external scale and knob.
  • Lock function is designed to get rid of the possible misuse.
  • Tolerance of torque +-4%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Inquiry
Product Introduction
proimages/products/Multi-Range_Preset_Torque_Wrench/多段式定扭特點說明_工作區域_1_u_220708.jpg
  1. Ratchet head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Metal Handle: The fine knurled metal handle to against oil, dust and slip issue for even long time use.
  4. Adjustment Knob: There are 2 to 5 stage options in preset value for 85 / 103 / 108 / 138 NM or 80 / 100 / 120 / 140 /160 FT-LB .

            By turning knob to indicated preset value then turn switch CW direction to lock.

proimages/products/Multi-Range_Preset_Torque_Wrench/多段式定扭操作應用圖-01.jpg
TT NO.Square driveTeethNmL(mm)gcase/CTN
TW-411-1D 1/2” 32T 103/ 138 462 1240 12
TW-411-2D 85/ 103/ 108 462 1240 12
TW-411-3D 85/ 103/ 108/ 138 462 1240 12
TT NO.Square driveTeethFt-lbL(mm)gcase/CTN
TW-411-4E 1/2” 32T 80/ 100/ 120/ 140/ 160 462 1240 12
