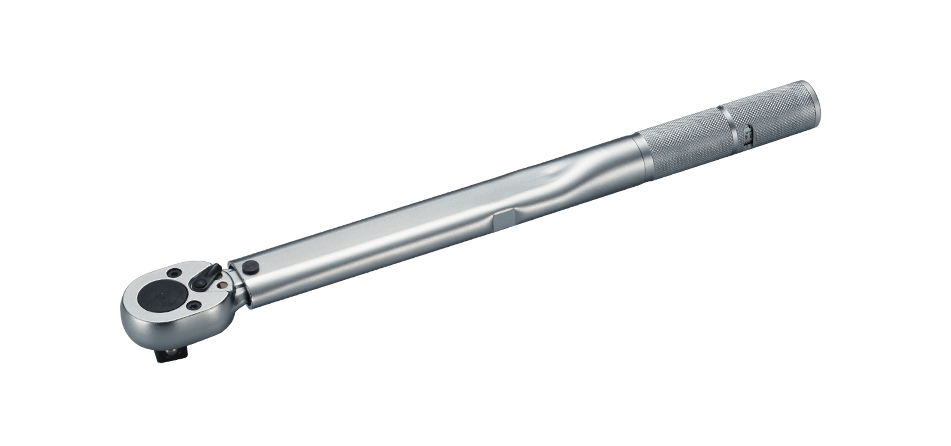

Pre-Lock Torque Wrench

Product Name : Pre-Lock Torque Wrench
Features
  • Industrial application with durability.
  • Both preset and adjustable functions are combined.
  • Torque value can be adjusted by allen key to prevent torque change by human error.
  • Flat metal tube mechanism with clear window scale-reading.
  • Loud click sound and strong impulse when required torque is reached.
  • Suitable for assembly and production line.
  • Tolerance of torque ±3%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Inquiry
Product Introduction
proimages/products/Pre-Lock_Torque_Wrench/T型視窗定扭特點說明_工作區域_1_up.jpg

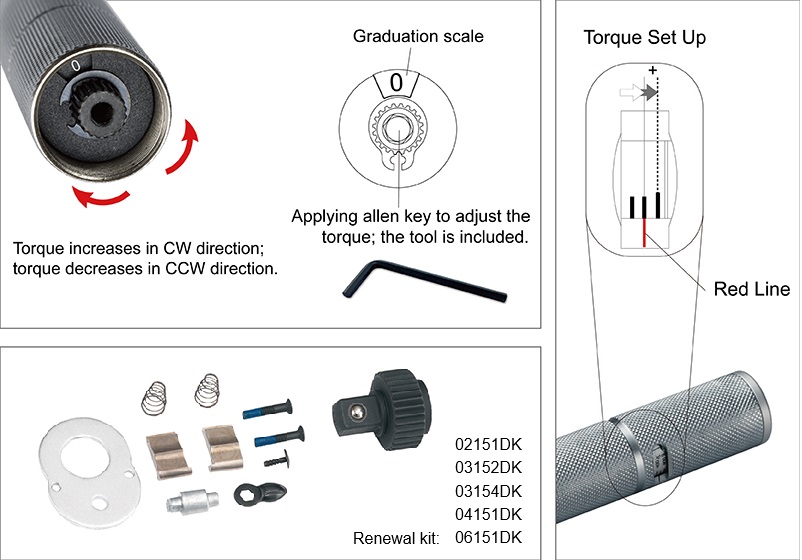

  1. Ratchet head: A highly robust ratchet mechanism for CW direction application. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. Thin head and flat tube is suitable for narrow working environment. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Knurled handle: Non-slip knurled handle design.

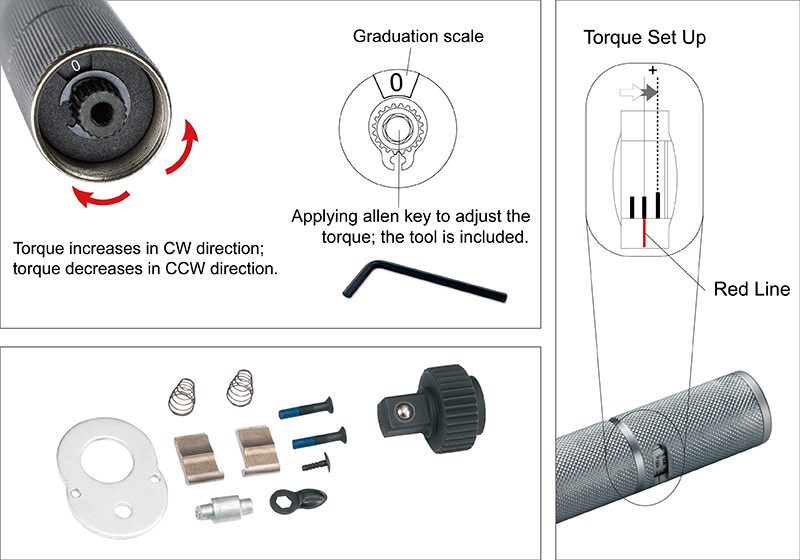

  4. Adjustment system and window reading:

    Torque value can be adjusted by allen key to prevent torque change by human error.

    Both preset and adjustable functions are combined.

proimages/products/Pre-Lock_Torque_Wrench/T型視窗定扭操作應用圖_工作區域_1.jpg
TT NO.Square driveTeethNmGraduationL(mm)gcase/CTN
TW-216-3D 1/4” 24T 2~10 0.1 167 186 24
TW-216-4D 3~15 0.1 218 227 24
TW-216-5D 5~25 0.25 224 236 24
TW-316-3D 3/8” 24T 5~25 0.25 224 236 24
TW-316-4D 10~50 0.5 247 504 24
TW-316-5D 20~100 1 324 650 12
TW-416-1D 1/2” 24T 20~100 1 325 650 12
TW-416-2D 30~140 1 354 723 12
TW-416-3D 40~200 2 475 1323 12
TW-616-1D 3/4" 24T 40~280 2 550 1529 12
TW-616-2D 60~420 2 605 1677 12
