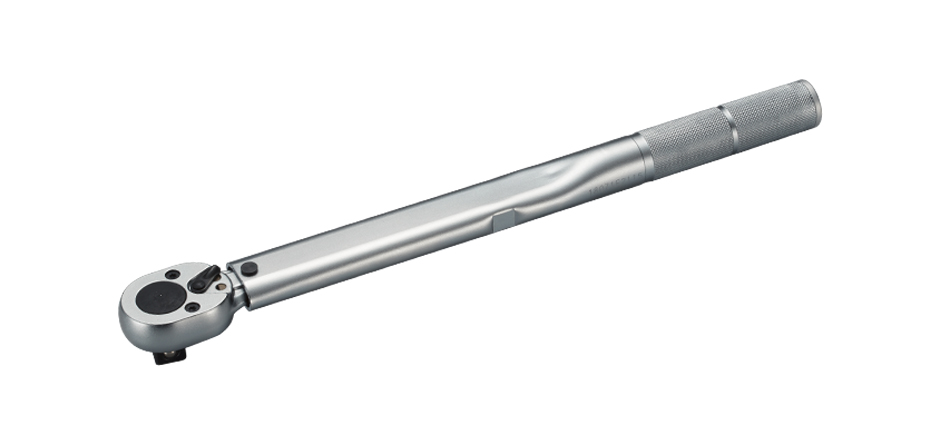

Preset Click Torque Wrench

Product Name : Preset Click Torque Wrench
Features
  • Industrial application with durability.
  • Tolerance of torque ±3%.
  • The customization of the torque setting.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Inquiry
Product Introduction
proimages/products/Click_Torque_Wrench/T型定扭特點說明_工作區域_1_up.jpg
  1. Ratchet head: A highly robust ratchet mechanism for CW direction application. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. Thin head and flat tube is suitable for narrow working environment. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Knurled handle: Non-slip knurled handle design.
  4. Presetting device: The presetting value is adjusted by the inner screw. The torque tester is required.
TT NO.Square driveTeethNmL(mm)gcase/CTN
TW-221-1D 1/4” 24T 0.3~2 162 177 24
TW-221-2D 0.6~3 162 177 24
TW-221-3D 1~6 162 177 24
TW-221-4D 2~15 211 223 24
TW-221-5D 5~25 218 234 24
TW-321-3D 3/8” 24T 5~25 218 234 24
TW-321-4D 10~50 240 472 24
TW-321-5D 20~100 320 575 24
TW-421-1D 1/2" 24T 20~100 320 575 24
TW-421-2D 30~140 347 710 24
TW-421-3D 40~200 470 1307 24
TW-621-1D 3/4" 24T 40~280 554 1520 24
TW-621-2D 60~420 609 1667 24
