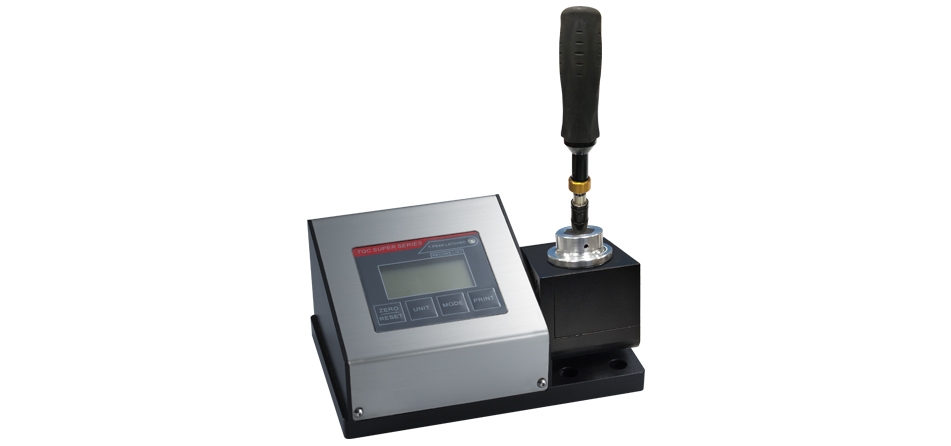

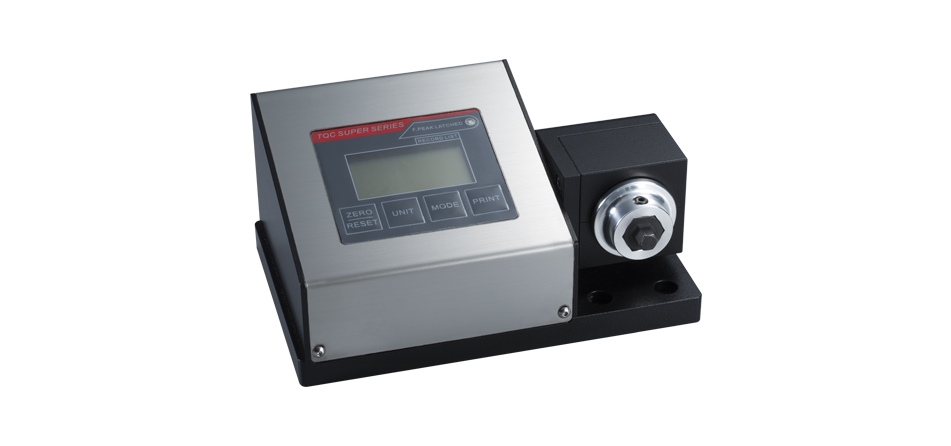

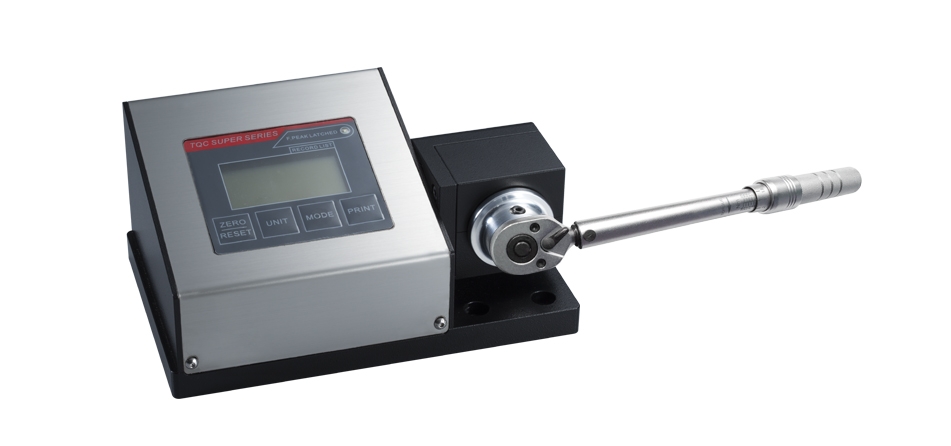

TQC Super Torque Tester (Avl. for Torque Screwdriver)

Product Name : TQC Super Torque Tester (Avl. for Torque Screwdriver)
Features
  • Under a constant speed to test the torque wrench in accordance with DIN ISO 6789 & ASME B107.300-2010 requirements.
  • Metrological accuracy ensuring reliability of test results.
  • Easy to operate of torque.
Inquiry
  1. Specialized torque testing equipment designed for the variety of mechanical torque wrenches.
  2. Simple, accurate and cost-effective torque tester for performing calibration checks in house.
  3. High speed of data reading performance(2400 run/sec)
  4. RS-232 communication port is included for the output of reading to PC.
  5. There are six torque units available for application(Lb-ft, Lb-in, N-m,N-cm, kg-m, kg-cm)
  6. As standard, the transducers is calibrated in a clockwise direction with a traceable calibration certificate.
  7. Quality meets BS7882:1997 standard with the accuracy of +-0.5% of reading over the 20%~100% of full scale.
  8. With three operating modes: "Track" displays the live value' "Peak" records the highest value and "First Peak" records the first peak of torque.
  9. Under "First Peak" mode, the "light signal" and "Buzzer" indicate the testing completion and testing return to zero.
  10. Memory function can display the 4 previous readings taken by the operator. It's no need to stop and write after each reading.
ModelTW-7718-15
Calibration Range (N-m) 0.75~15Nm
Accuracy +-0.5%
Units of Measurement Lb-in, Lb-ft, Kg-m, Kg-cm, Nm, N-cm
System Resolution (N-m) 0.001
Input Hex A/F (mm) 10mm
Square Drive Adaptor 1/4", 3/8"
Operating Temperature Range +5ﾟC~ +40ﾟC
Storage Temperature Range +0ﾟC~ +70ﾟC
Power Cable 200mm
Power Consumption (watt) 5
DC Power Output DC 9.0V
Power Supply Unit The Unit is with US plug (IEC320 C13); Complied standard UL 817, CSA 22.2 NO.21-95
Base Material/ Finish Aluminum/ Painting
Dimension (L*W*H) 237*150*106mm
Weight 7.7kg
